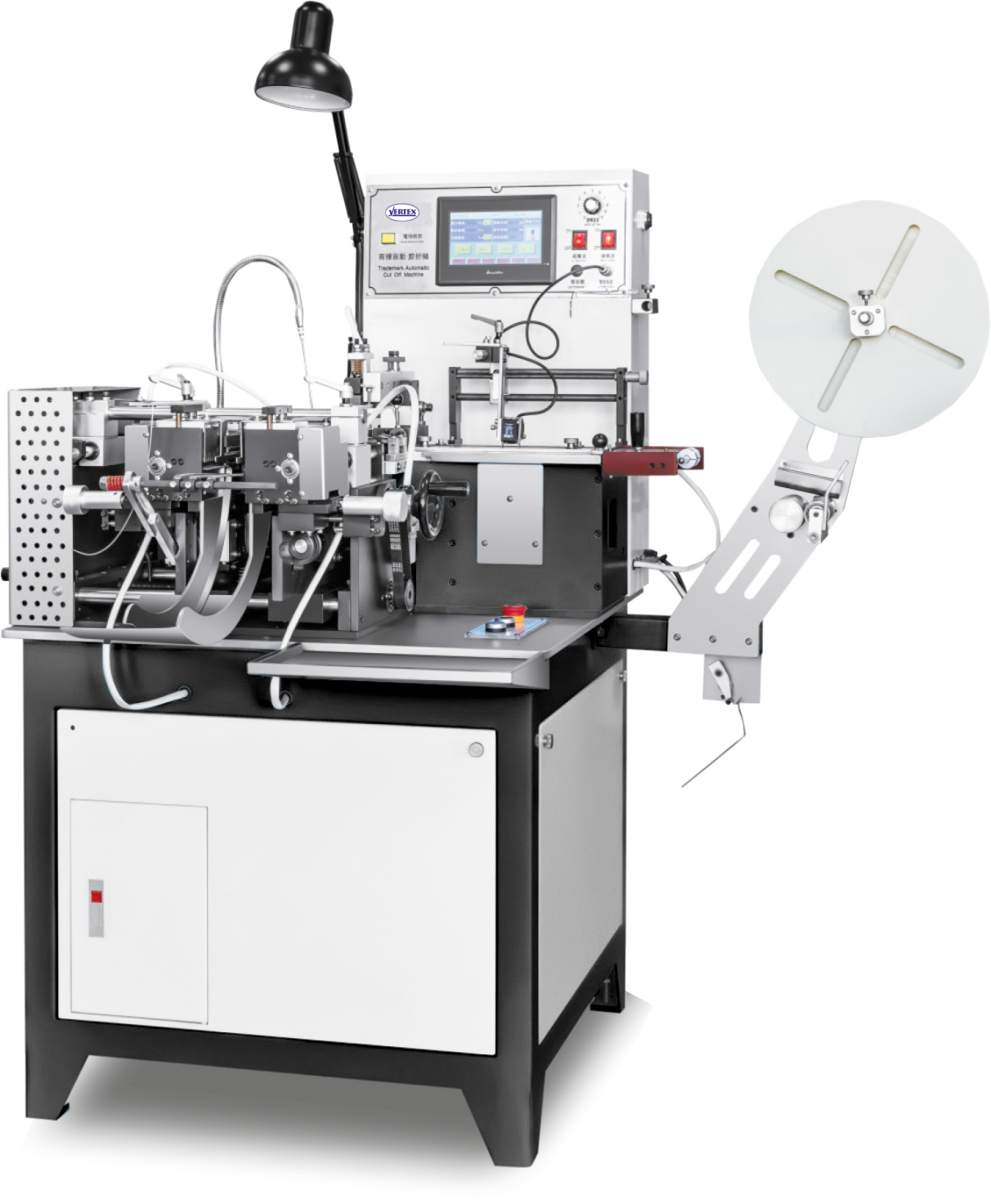

VET 70 (Full Function All Fold Machine)

Chopper Fold The Label In Five Different Shapes

VET 70

Full Function All Fold Machine

Label cutting and folding machine is featured with a compact structure and easy operation. Only need the change of the mold, the machine is able to chopper fold five types of labels.Use computerized control system the operating system has equipped with a high-end panel that is powerful and user friendly The main engine is driven by the frequency changer circuit to realize a soft start, and with the addition of a high-performance photoelectric system, which allows automatically to recognize the labels and stop when there’s no label or defective labels.

It’s also featured with characteristics of adjusting the length of the label without the use of any tool, also it can be equipped with a Color sensor system according to users’ requirements. The main target of this system is for chopper folding the printed labels and the labels without pushing line.

VET 70

Full Function All Fold Machine

Label cutting and folding machine is featured with a compact structure and easy operation. Only need the change of the mold, the machine is able to chopper fold five types of labels.Use computerized control system the operating system has equipped with a high-end panel that is powerful and user friendly The main engine is driven by the frequency changer circuit to realize a soft start, and with the addition of a high-performance photoelectric system, which allows automatically to recognize the labels and stop when there’s no label or defective labels.

It’s also featured with characteristics of adjusting the length of the label without the use of any tool, also it can be equipped with a Color sensor system according to users’ requirements. The main target of this system is for chopper folding the printed labels and the labels without pushing line.

Technical Specifications

Folding Types Cut seal, End fold, Center fold, Triangle fold.
Cutting Length 10 – 160mm
Cutting Width 10 – 70mm
Cutting Speed 180pcs/min
Cutter Type Cold Cut and Hot Cut
Power Supply Single Phase 220v 50-60 hz
Electric Consumption 1.8 kw
Operation Mode Digital Touch Screen
Weight 295kgs
Dimensions L 1100 x W 950 x H 1620mm

Technical Specifications

Folding Types Cut seal, End fold, Center fold, Triangle fold.
Cutting Length 10 – 160mm
Cutting Width 10 – 70mm
Cutting Speed 180 pcs/min
Cutter Type Cold Cut and Hot Cut
Power Supply Single Phase 220v 50-60 hz
Electric Consumption 1.8 kw
Operation Mode Digital Touch Screen
Weight 295kgs
Dimensions L 1100 x W 950 x H 1620mm

Samples

Samples
